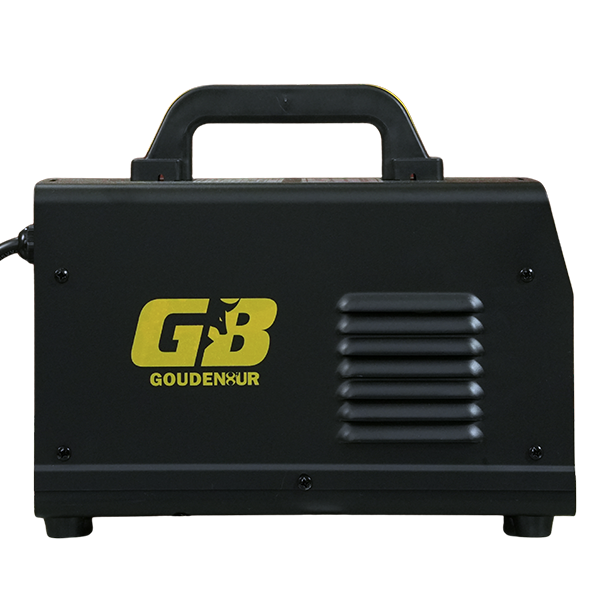

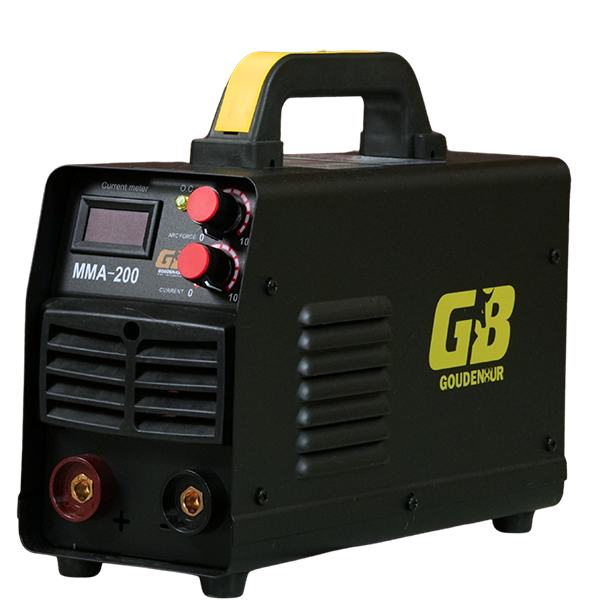

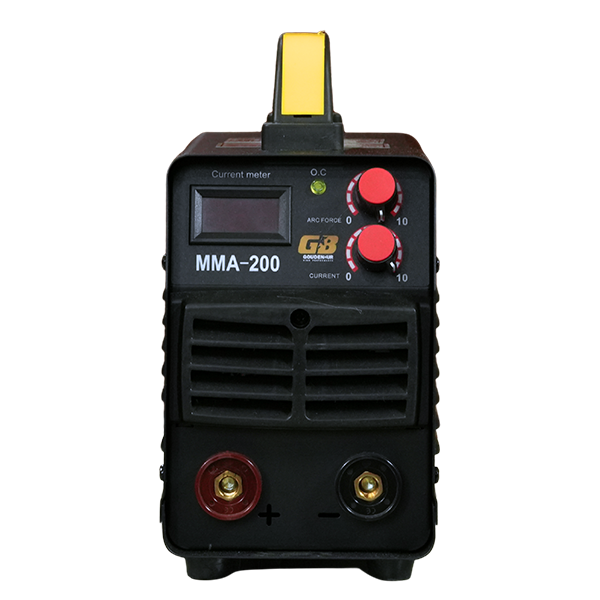

MMA 200

Input Voltage : 1 Phase 120V/ 220V
50/60Hz

Input Capacity(KVA) : 7.2

No-load Voltage(V) : 62

Output Current Range(A) : 120V/140A
220V/160A

Duty Cycle(%) : 120V/40%
220V/40%

Efficiency(%) : 80

Protection Class : IP21S

Insulation Class : F

Power Factor : 0.93

Applied Electrodes(mm) : 1.6-4.0

Machine Size(mm) : 275x110x230

Packing Size(mm) : 325x140x270

Weight(Kg) : 3.8
