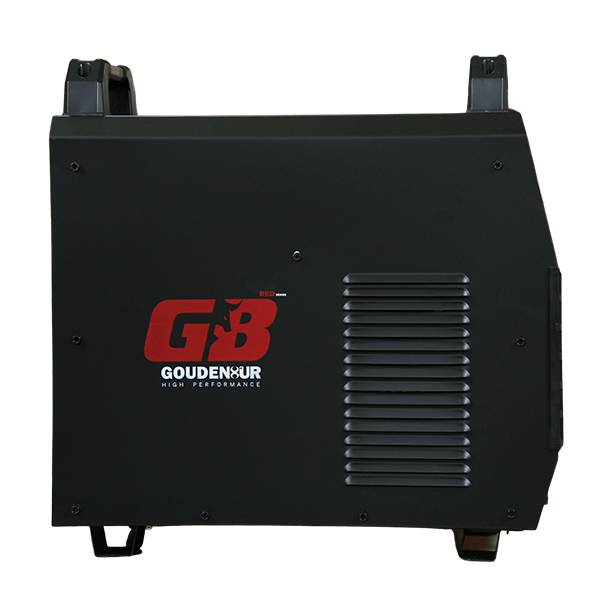

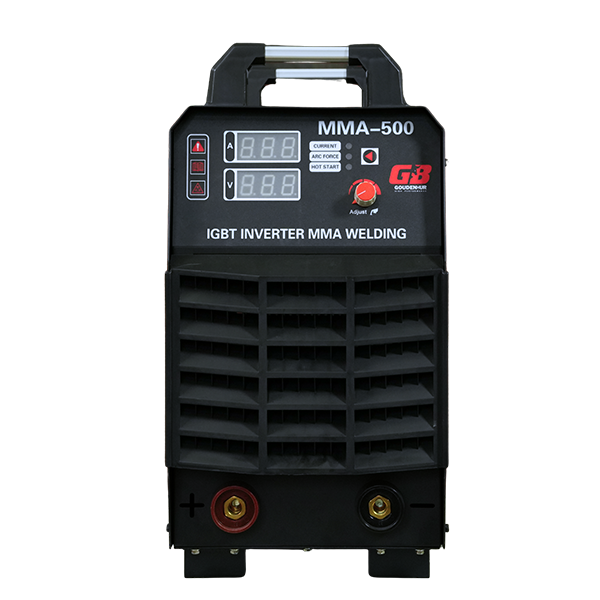

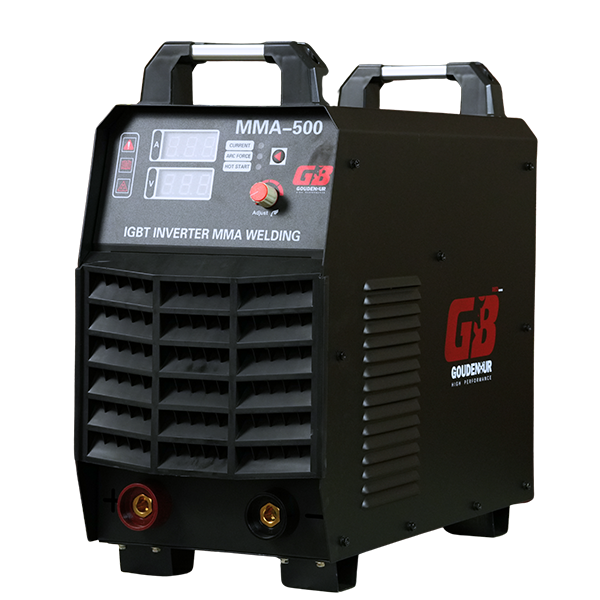

MMA 500 GB Red Series

Input Voltage (V) : 3 Phase 380V 50/60Hz
Input Capacity (KVA) : 24
No-load voltage (V) : 60
Output Current Range (A) : 40-450A
Duty Cycle (%) : 80%
Effeciency (%) : 85
Protection Class : IP21S
Insulation Class : F
Applied Electrodes (mm) : 2.5-6.0
Machine Size (mm) : 500x240x450
Packing Size (mm) : 585x335x612
Weight (Kg) : 26
