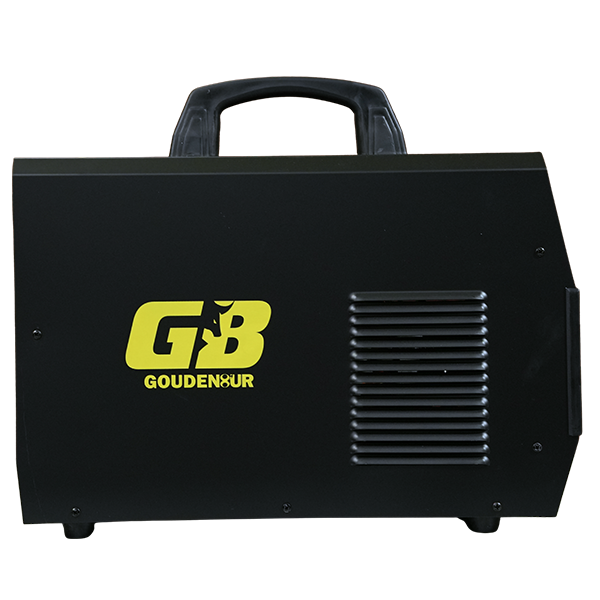

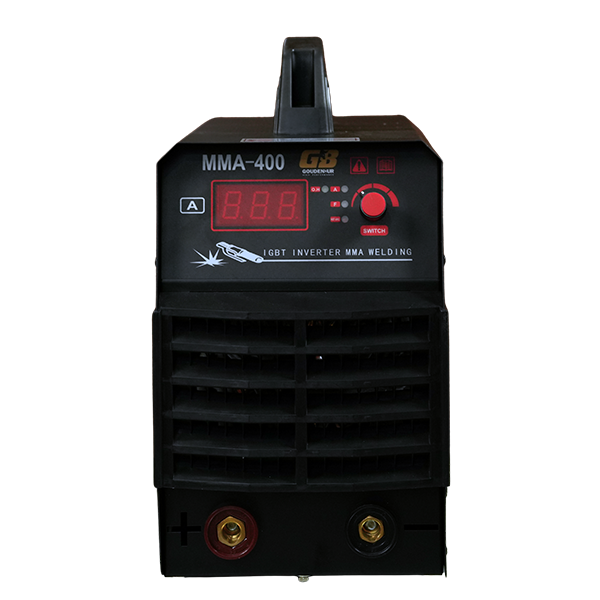

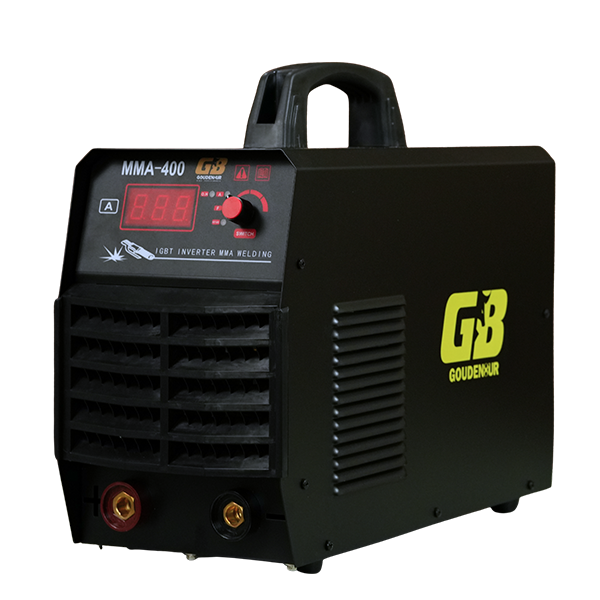

MMA 400

Input Voltage : 3 Phase 380V 50/60Hz

Input Capacity(KVA) : 13

No-load Voltage(V) : 60

Output Current Range(A) : 40-315

Duty Cycle(%) : 70

Efficiency(%) : 85

Protection Class : IP21S

Insulation Class : F

Applied Electrodes(mm) : 1.6-5.0

Machine Size(mm) : 440x190x375

Packing Size(mm) : 500x260x390

Weight(Kg) : 8
